Our current YASDA Machine can get accuracy as following result .

Our present YASDA machine can get accuracy result as following.

We use TAYLOR HOBSON-TALYSURF 200 for measurment.

Flatness - Pt = 0.4 µm

Roughness - Ra = 0.2 µm

Flatness : Pt; Waviness : Wa Wq Wt; Roughness : Ra Rq Rt

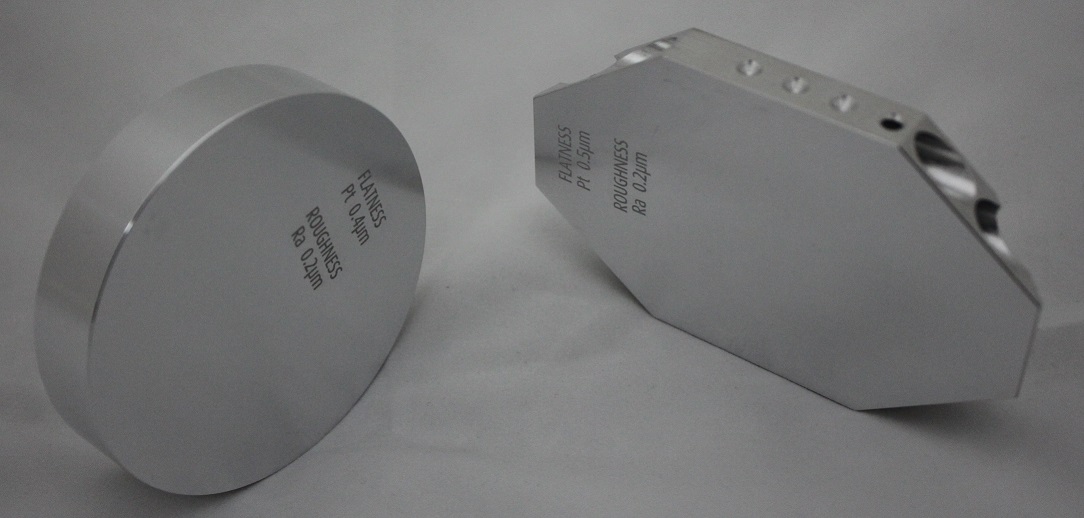

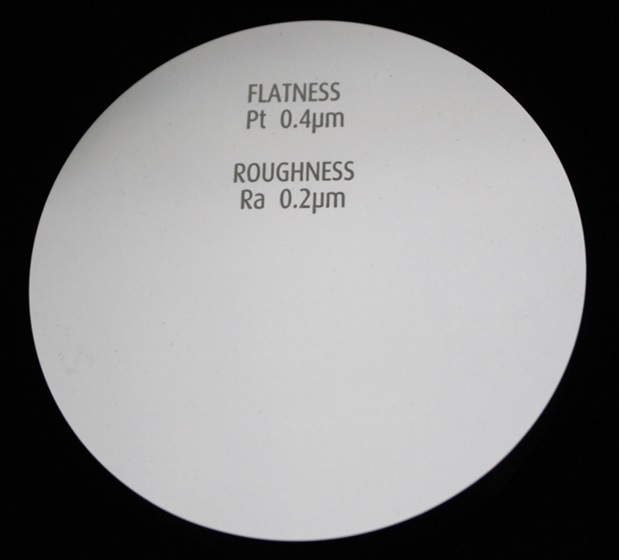

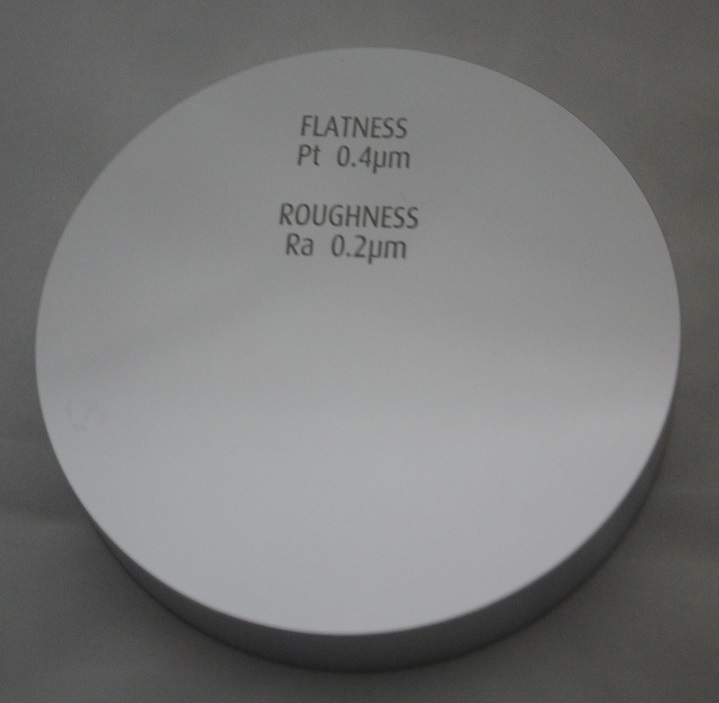

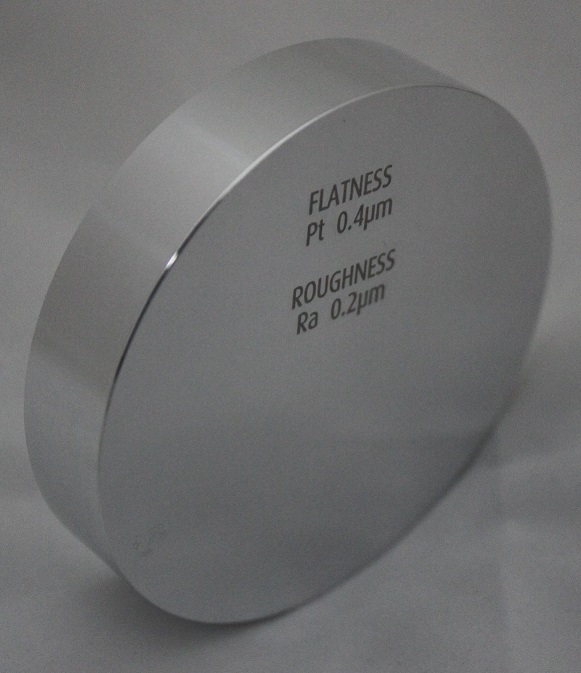

1. Alu Part-1 Sample

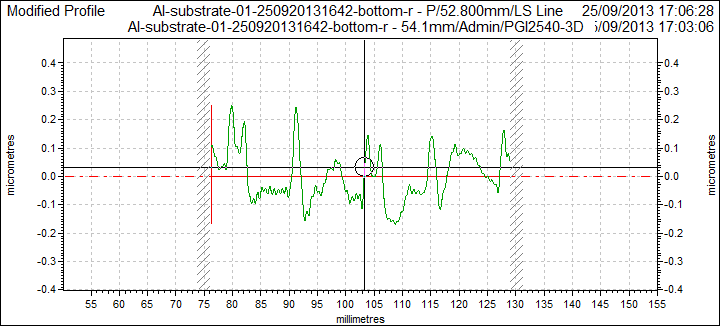

Flatness Report - Pt 0.4191 µm

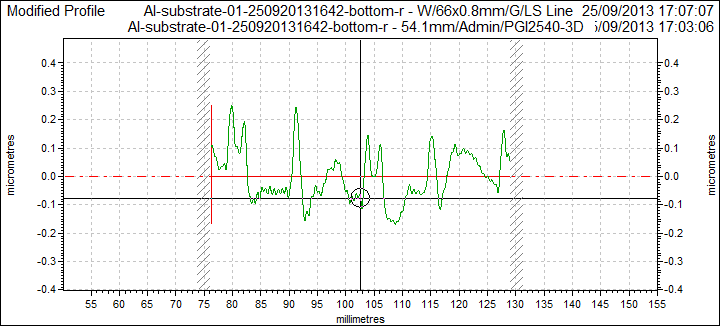

Waviness Report - Wa 0.0735 µm    Wq 0.0884 µm   Wt 0.4191 µm

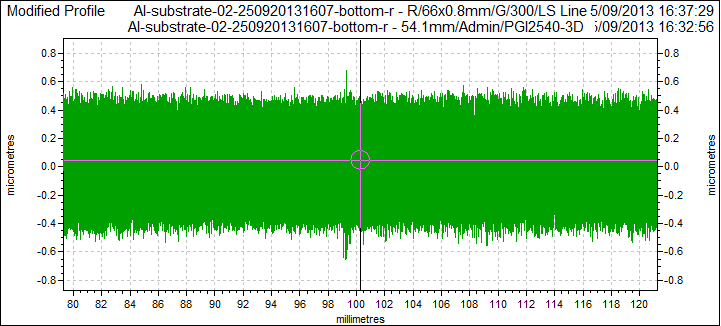

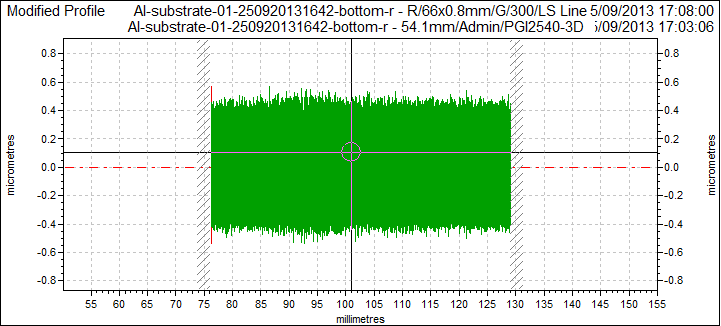

Roughness Report - Ra 0.1995 µm     Rq 0.2368 µm     Rt 1.1169 µm

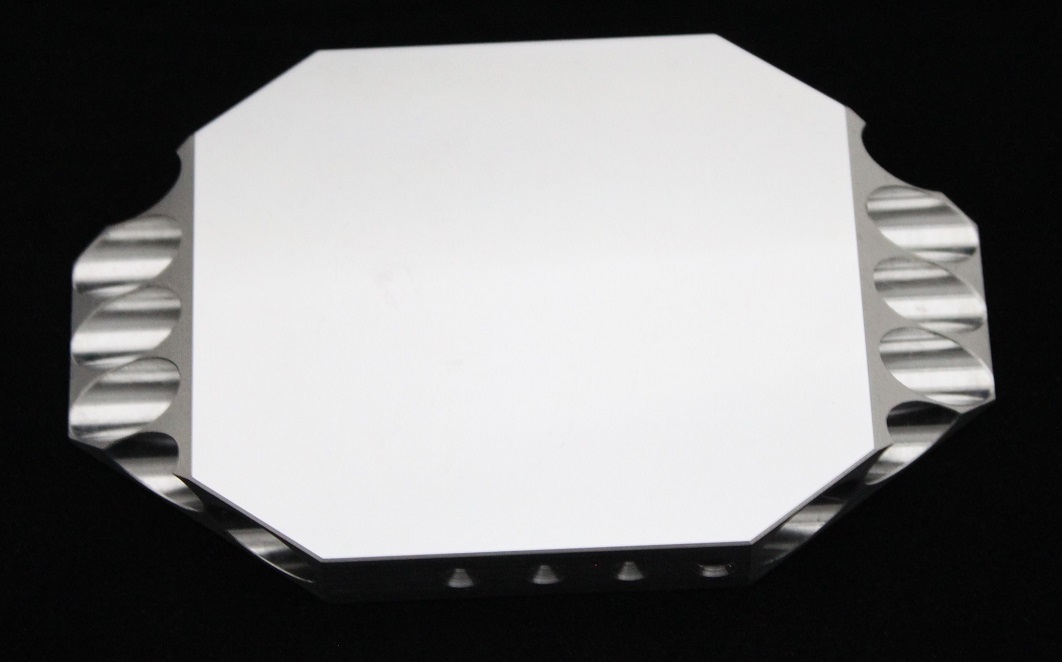

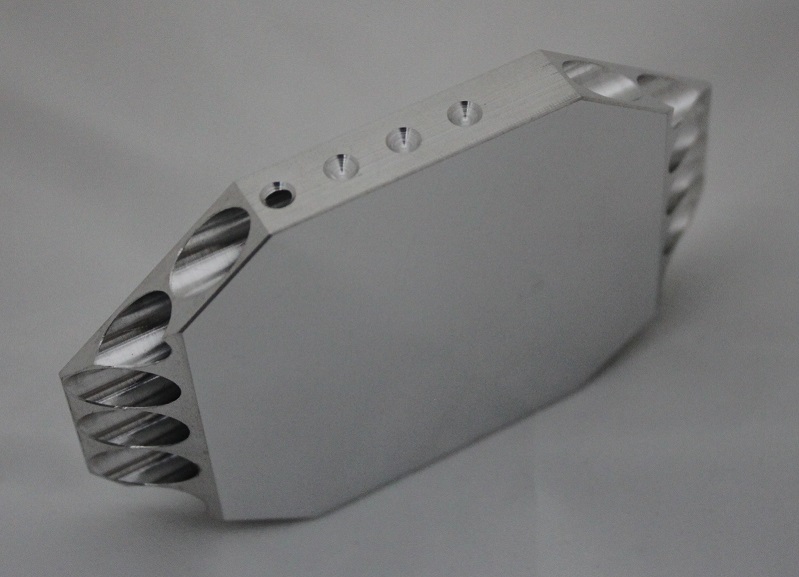

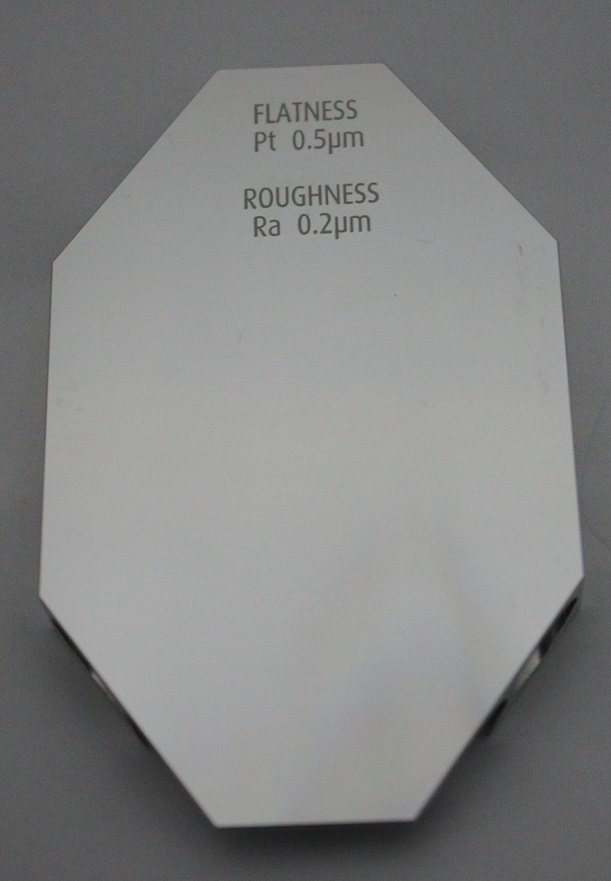

2. Alu Part-2 Sample

Flatness Report - Pt 0.4823 µm

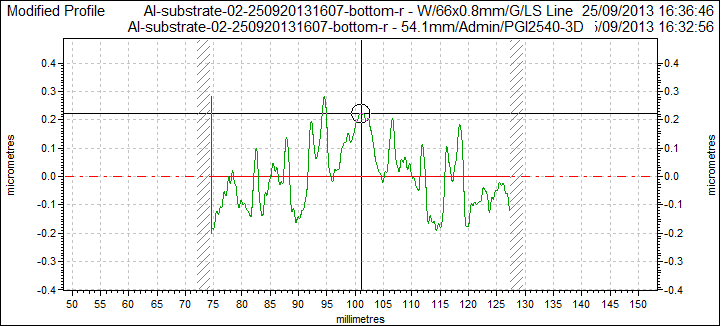

Waviness Report - Wa 0.0923 µm    Wq 0.1114 µm   Wt 0.4823 µm

Roughness Report - Ra 0.2052 µm     Rq 0.2461 µm     Rt 1.3397 µm
